Alight 3 DD Disc Pistachio

Article code 2210108115
Available in store: Check availability

Available in store

Close
Size :
€649,00
Add to cart
Delivery time: Please allow 7-14 days for bicycle delivery as we have to build it, quality check it fully and repack it for shipping. Assembly of the front wheel and handlebars will be required. Bikes for Home Assembly will be shipped within 1-2 working days
2 in stock
  • Overview

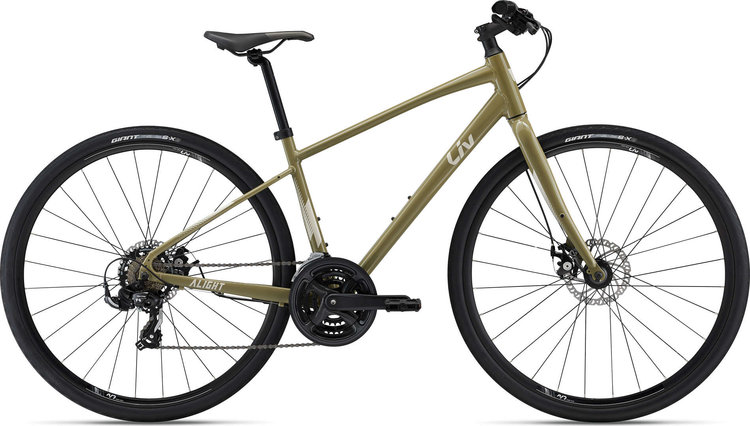

  • The Alight 3 DD Disc is redesigned with a fast and fresh look, and is equipped with touchpoints to maximize comfort and dependable components, making this a versatile flat-bar road bike perfect for commuting and keeping an active lifestyle

Product details

Size Guide:

Specifications:

  • Colours
    Pistachio
  • Frame
    ALUXX-Grade Aluminum, disc
  • Fork
    High-tensile steel, rack mount, disc
  • Handlebar
    Giant Sport XC, 25.4mm XS:60cm, S:60cm, M:64cm, L:64cm
  • Grips
    Liv Sport Grip XS: 31mm, S:31mm, M:31mm, L:34mm
  • Stem
    Giant Sport, 25.4mm XS:80mm, S:80mm, M:90mm, L:100mm
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Liv Sport Saddle, 160mm
  • Pedals
    Platform pedal
  • Shifters
    Shimano Tourney, 3x7
  • Front Derailleur
    Shimano Altus
  • Rear Derailleur
    Shimano Tourney
  • Brakes
    Tektro TKB-172 mechanical [F]160mm, [R]160mm
  • Brake Levers
    Tektro mechanical
  • Cassette
    Shimano MF-TZ500, 14x34
  • Chain
    KMC Z7
  • Crankset
    ProWheel TY-CQ99, 28/38/48 XS:165mm, S:165mm, M:170mm, L:172.5mm
  • Bottom Bracket
    cartridge
  • Rims
    Giant GX Disc wheelset
  • Hubs
    Giant GX Disc wheelset
  • Spokes
    Giant GX Disc wheelset
  • Tyres
    Giant S-X3, puncture protect, 700x38c

bike diagram with measurements referenced in table that follows

    XS S M L
A SEAT TUBE LENGTH (inch) 14.6 16.5 18.1 19.7
B SEAT TUBE ANGLE 73.5° 73.5° 73.0° 73.0°
C TOP TUBE LENGTH (inch) 21.1 21.7 22.4 23.2
D HEAD TUBE LENGTH (inch) 5.1 5.9 6.3 6.9
E HEAD TUBE ANGLE 70.0° 70.5° 71.0° 71.0°
F FORK RAKE (inch) 2 2 2 2
G TRAIL (inch) 3.1 2.9 2.8 2.8
H WHEELBASE (inch) 41.1 41.5 41.9 42.7
I CHAIN STAY LENGTH (inch) 17.5 17.5 17.5 17.5
J BOTTOM BRACKET DROP (inch) 2.4 2.4 2.4 2.4
K STACK (inch) 21.8 22.6 23.1 23.7
L REACH (inch) 14.6 15 15.4 16
M STAND OVER HEIGHT (inch) 23.3 23.2 23.3 23.1
N HANDLEBAR WIDTH (inch) 23.6 23.6 25.2 25.2
O STEM LENGTH (inch) 3.1 3.1 3.5 3.9
P CRANK LENGTH (inch) 6.5 6.5 6.7 6.7
Q WHEEL SIZE 700C 700C 700C 700C
