Product details

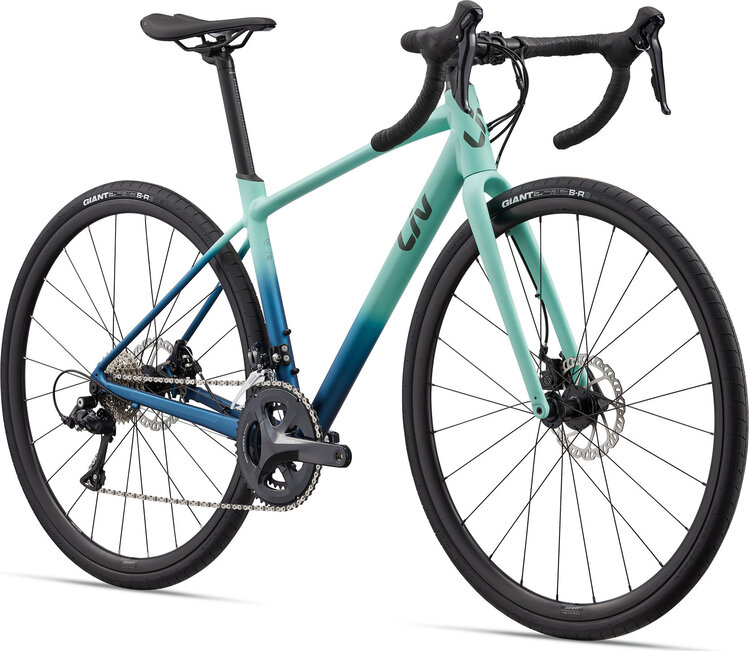

Experience the thrill of smooth rides on asphalt and the excitement of conquering unpaved shortcuts with the Liv Avail AR 3 Women's Road Bike. This exceptional road bike is designed to excel in every aspect, from comfortable endurance rides to nimble climbs and confident descents, making it the perfect choice for female cyclists seeking a top-notch performance.
Key Features and Performance Factors:
Comfort is Paramount: The Liv Avail AR 3 is crafted with a lightweight ALUXX frame that incorporates the latest women's endurance geometry. The Advanced-Grade Composite fork and D-Fuse seatpost work in harmony to minimize vibrations, ensuring a more comfortable and enjoyable cycling experience even during long rides.
Unmatched Control: Equipped with 32c tires, the Avail AR provides steady traction on both roads and off-road terrains. It also offers compatibility with tires up to 38c, with select models featuring a tubeless design. The bike's precise handling is maintained thanks to the OverDrive steerer, while the powerful disc brakes guarantee optimal control and safety on every ride.
Designed for Long Hauls: The Liv Avail AR 3 boasts an impressive carrying capacity. With provisions to accommodate a rack and fenders, this bike ensures you are well-equipped for those extended cycling adventures, allowing you to carry your essentials with ease.
Size Guide:
| Size | Height Range (cm) |
|---|---|
| XS | 153 - 162 |
| S | 158 - 169 |
| M | 165 - 174 |
| L | 171 - 182 |
Geometry:
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 410 | 445 | 480 | 515 |
| B | SEAT TUBE ANGLE | 74.5° | 74.5° | 74.0° | 74.0° |
| C | TOP TUBE LENGTH (mm) | 515 | 525 | 540 | 555 |
| D | HEAD TUBE LENGTH (mm) | 118 | 138 | 158 | 178 |
| E | HEAD TUBE ANGLE | 70.5° | 71.5° | 72.0° | 72.0° |
| F | FORK RAKE (mm) | 53 | 53 | 53 | 53 |
| G | TRAIL (mm) | 69.5 | 62.9 | 59.6 | 59.6 |
| H | WHEELBASE (mm) | 999 | 1001 | 1006 | 1022 |
| I | CHAIN STAY LENGTH (mm) | 422 | 422 | 422 | 422 |
| J | BOTTOM BRACKET DROP (mm) | 80 | 80 | 80 | 80 |
| K | STACK (mm) | 538 | 561 | 582 | 601 |
| L | REACH (mm) | 366 | 369 | 373 | 383 |
| M | STAND OVER HEIGHT (mm) | 681 | 709 | 736 | 766 |
| N | HANDLEBAR WIDTH (mm) | 380 | 400 | 400 | 420 |
| O | STEM LENGTH (mm) | 70 | 80 | 90 | 90 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 172.5 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
Specifications:
| Attribute | Specifications |
|---|---|
| Sizes | XS, S, M, L |
| Colours | Terra Roza/Metallic Army, Ocean Wave / Seaport Blue |
| Frame | ALUXX-Grade Aluminum, 12x142mm thru-axle, disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Connect, 31.8mm, XS:38cm, S:40cm, M:40cm, L:42cm |
| Grips | Liv All Condition |
| Stem | Giant Sport XXS:70mm, XS:70mm, S:80mm, M:90mm, L:90mm |
| Seatpost | Giant D-Fuse, alloy XXS:350mm, XS:350mm, S:350mm, M:350mm, L:350mm |
| Saddle | Liv Approach |
| Pedals | N/A |
| Shifters | Shimano Sora 2x9 |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora |
| Brakes | Tektro MD-C550 mechanical, Shimano rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano Sora |
| Cassette | Shimano CS-HG400, 9-speed, 11x34 |
| Chain | KMC X9 |
| Crankset | Shimano Sora, 34/50 XS:165mm, S:170mm, M:170mm, L:172.5mm |
| Bottom Bracket | Cartridge |
| Rims | Giant S-R2 Disc wheelset |
| Hubs | Giant S-R2 Disc wheelset, 12mm thru-axle |
| Spokes | Giant S-R2 Disc wheelset |
| Tyres | Giant S-R3 AC, 700x32c (34mm effective width) |
| Extras | 38mm max tyre size |
