Product details

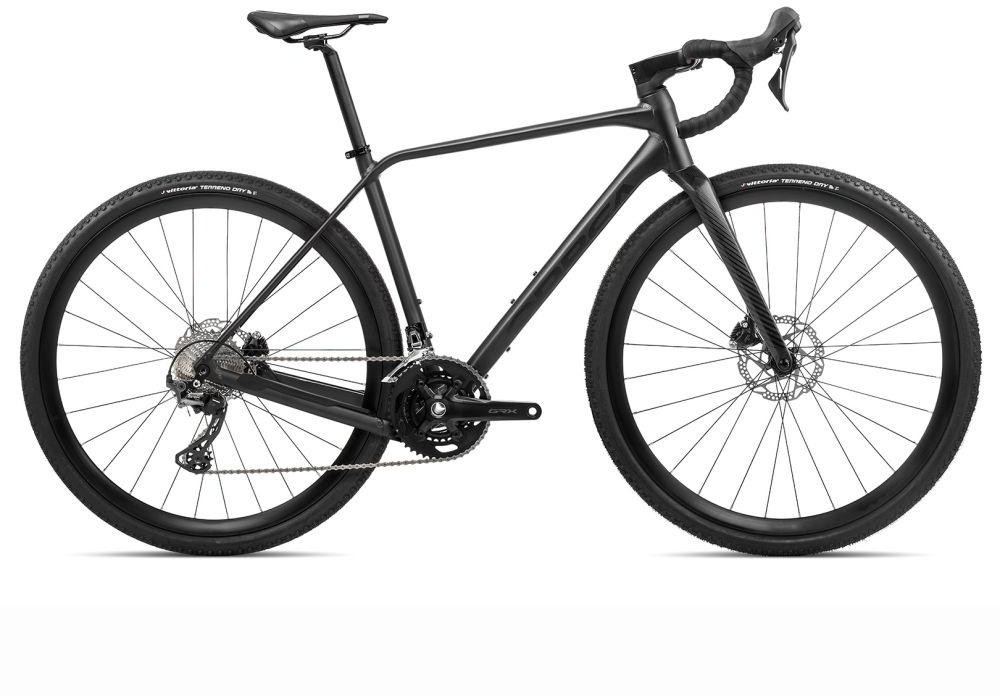

Constructed with advanced hydroformed aluminum and optimized tube sizing, the Orbea Terra H30 ensures maximum comfort during long rides. The frame's thoughtful engineering minimizes vibrations and absorbs road imperfections, allowing you to conquer any terrain with ease. Experience unparalleled freedom as you navigate through gravel paths, rough trails, and challenging landscapes.
The Orbea Terra H30's exceptional design doesn't compromise on aesthetics. Its sleek and stylish appearance is sure to turn heads as you ride through urban streets or remote trails. With its well-rounded performance and eye-catching looks, this bike is equally at home in the city or the great outdoors.
Engineered to meet the demands of avid gravel cyclists, the Orbea Terra H30 boasts reliable components and cutting-edge technology. It features a precise and responsive drivetrain, allowing for seamless gear transitions even on challenging terrains. The dependable braking system ensures optimal control and safety, inspiring confidence in every descent and corner.
Size Guide:
| SIZE | CRANK | STEM | HANDLEBAR | HEIGHT (CM) | HEIGHT (FT & IN) |
|---|---|---|---|---|---|
| XS | 170 | 70 | 400 | 155-166 | 5'1"-5'5" |
Geometry:
| Component | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| 1 - SEAT TUBE (C-T) | 425 | 458 | 491 | 524 | 557 | 590 |
| 2 - TOP TUBE (EFF) | 526 | 539 | 558 | 570 | 590 | 603 |
| 3 - HEAD TUBE | 110 | 131 | 152 | 178 | 199 | 220 |
| 4 - CHAINSTAY | 430 | 430 | 430 | 430 | 430 | 430 |
| 5 - BB HEIGHT (30-622) | 263 | 263 | 263 | 265 | 265 | 265 |
| 5 - BB HEIGHT (40-622) | 278 | 278 | 278 | 280 | 280 | 280 |
| 6 - BB DROP | 78 | 78 | 78 | 76 | 76 | 76 |
| 7 - WHEELBASE | 1020 | 1030 | 1039 | 1054 | 1063 | 1072 |
| 8 - HEAD ANGLE | 70º | 70.5º | 71º | 71º | 71.5º | 72º |
| 9 - SEAT ANGLE | 74º | 74º | 73.5º | 73.5º | 73º | 73º |
| 10 - STANDOVER (30-622) | 704 | 731 | 759 | 788 | 815 | 838 |
| 10 - STANDOVER (40-622) | 718 | 746 | 773 | 803 | 830 | 853 |
| 11 - REACH | 375 | 382 | 389 | 395 | 402 | 409 |
| 12 - STACK | 526 | 548 | 570 | 592 | 614 | 636 |
| 13 - FORK LENGTH | 390 | 390 | 390 | 390 | 390 | 390 |
| TRAIL (30-622) | 66 | 62 | 59 | 59 | 56 | 53 |
| TRAIL (40-622) | 71 | 68 | 64 | 64 | 61 | 58 |
Specifications:
| FRAMES | FRAME |
|---|---|
| Model | Orbea Terra Hydro disc |
| Material | Hydroformed triple butted aluminium |
| Headset | HS 1,5", PF |
| Rear Axle | Thru Axle 12mm x 142mm, thread M12x2 P1 |
| Cable Routing | DT internal |
| Seat Tube | 27.2mm |
| MMS System | Yes |
| FORK | Orbea Terra ICR |
|---|---|
| Material | Full carbon |
| Head Tube Compatibility | 1-1/8" - 1,5" tappered |
| Front Axle | Thru axle 12x100mm, thread M12x2 P1 |
| Component | Description |
|---|---|
| HEADSET | FSA 1-1/2" Integrated Aluminium Cup |
| DRIVETRAIN | |
|---|---|
| CRANKSET | Alloy forged 30x46t |
| SHIFTERS | Shimano ST-RX600 |
| CASSETTE | Shimano 105 R7000 11-34t 11-Speed |
| REAR DERAILLEUR | Shimano RD-RX810 |
| FRONT DERAILLEUR | Shimano GRX RX810 |
| CHAIN | Shimano HG 601 |
| COCKPIT | |
|---|---|
| HANDLEBAR | OC Gravel GR30-R |
| Handlebar Rise | 15 |
| Handlebar Reach | 70 |
| Handlebar Drop | 125 |
| STEM | OC Road Performance RP21 |
| Stem Angle | -6º |
| BRAKES | |
|---|---|
| BRAKES | Shimano RX400 Hydraulic disc |
| BRAKES CONFIGURATION |
| WHEELS | |
|---|---|
| WHEELS | Alloy, Tubeless, 700c, 21c |
| TYRES | Vittoria Terreno Dry Gravel 700x38c |
| FRONT WHEEL AXLE | Orbea Thru Axle 12x100mm M12x2 P1 Solid |
| REAR WHEEL AXLE | Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
| COMPONENTS | |
|---|---|
| SEATPOST | Carbon, 27.2mm, Setback 20 |
| SADDLE | Fizik Aliante R5 |
| ACCESSORIES | |
|---|---|
| MUDGUARD | |
| HANDLEBAR TAPE | Orbea Eva |
| ADDITIONAL FEATURES | |
|---|---|
| KIT TUBELESS |
