FastRoad AR 3 - Charcoal Plum

Article code 2310164115
Available in store: Check availability

Available in store

Close
Size :
+-
€1.149,00
Add to cart
Delivery time: Please allow 7-14 days for bicycle delivery as we have to build it, quality check it fully and repack it for shipping. Assembly of the front wheel and handlebars will be required. Bikes for Home Assembly will be shipped within 1-2 working days
1 in stock
  • Overview
    • With flat handlebars, ALUXX aluminium frame, and wide tubeless tires, it conquers diverse terrains effortlessly. Lightweight efficiency meets stability with disc brakes, D-Fuse seatpost, and ergonomic design.

Product details

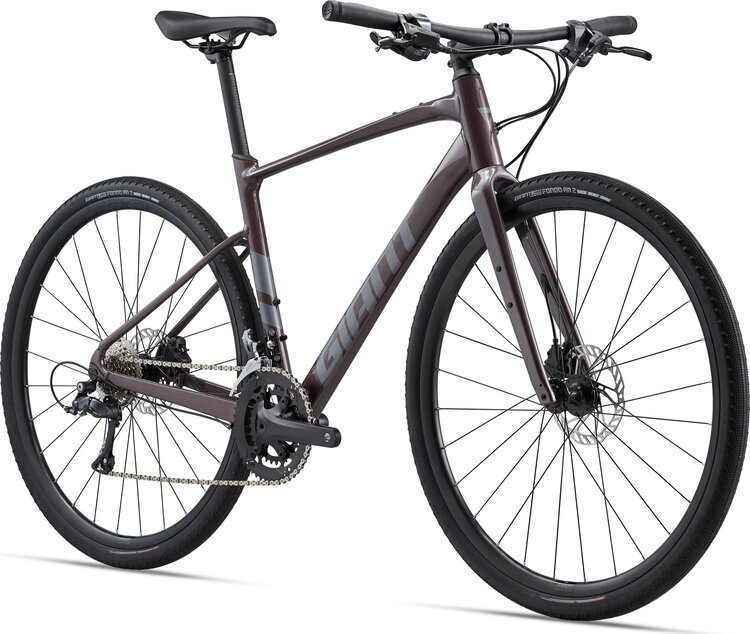

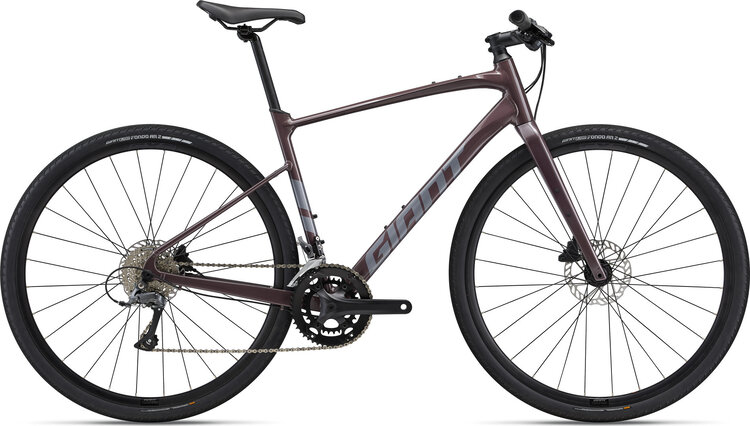

The "Giant FastRoad AR 3" is your ticket to a versatile and agile road biking experience. With a flat handlebar positioning, smooth compliance, and wide tubeless tires, this road bike effortlessly conquers paved roads, bumpy bike paths, and everything in between. Its lightweight efficiency, stable ride quality, and all-road capabilities make it a top choice for riders seeking performance and versatility.

Key Features:

  • Lightweight Efficiency: Crafted with a high-quality ALUXX aluminium frame and composite fork, this bike delivers efficient pedaling power for a smooth and fast ride on variable roads and paths.

  • Smooth, Stable Ride Quality: The flat handlebar frame geometry ensures a more upright riding position, promoting confident handling. Powerful disc brakes provide added control in all conditions, while the D-Fuse composite seatpost and ErgoMax saddle combination smooth out rough roads.

  • All-Road Capabilities: Offering clearance for high-volume tubeless tyres (up to 42mm), this bike provides freedom and versatility to tackle smooth roads, bumpy bike paths, or gravel. Different models offer single or double chainring setups to suit individual riding styles and terrains.



Size Guide:

Size Height Range (cm) Height Range (ft & inches)
S 160 cm to 170 cm 5'3" to 5'7"
M 170 cm to 180 cm 5'7" to 5'11"
ML 175 cm to 185 cm 5'9" to 6'1"
L 180 cm to 190 cm 5'11" to 6'3"
XL 190 cm to 200 cm 6'3" to 6'7"



Geometry:

bike diagram with measurements referenced in table that follows

    S M ML L XL
A SEAT TUBE LENGTH (mm) 455 475 495 525 555
B SEAT TUBE ANGLE 73.5° 73.5° 73.0° 73.0° 73.0°
C TOP TUBE LENGTH (mm) 560 575 590 610 630
D HEAD TUBE LENGTH (mm) 130 155 175 200 225
E HEAD TUBE ANGLE 70.5° 71.0° 71.0° 71.5° 71.5°
F FORK RAKE (mm) 50 50 50 50 50
G TRAIL (mm) 74 70 70 67 67
H WHEELBASE (mm) 1047 1058 1069 1084 1105
I CHAIN STAY LENGTH (mm) 435 435 435 435 435
J BOTTOM BRACKET DROP (mm) 75 75 75 75 75
K STACK (mm) 552 578 597 623 646
L REACH (mm) 396 404 407 419 432
M STAND OVER HEIGHT (mm) 736 756 773 800 826
N HANDLEBAR WIDTH (mm) 640 680 680 680 680
O STEM LENGTH (mm) 80 90 90 100 110
P CRANK LENGTH (mm) 170 170 172.5 172.5 172.5
Q WHEEL SIZE 700C 700C 700C 700C 700C



Specifications:

Component Specification
Sizes S, M, ML, L, XL
Colours Gloss Charcoal Plum
Frame ALUXX-Grade Aluminium, 12x142mm thru-axle, Disc
Fork Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12x100mm thru-axle
Shock N/A
Handlebar Giant Sport low rise
Grips Giant ErgoContact
Stem Giant Sport
Seatpost Giant D-Fuse Alloy
Saddle Giant ErgoMax
Pedals Platform pedal
Shifters Shimano Claris, 2x8
Front Derailleur Shimano Claris
Rear Derailleur Shimano Claris
Brakes Tektro Flat mount HD-R280 hydraulic disc brakes, 160 rotors
Brake Levers Tektro HD-R280
Cassette Shimano CS-HG41, 11x34
Chain KMC Z8.3
Crankset Forged aluminium alloy, 32/48
Bottom Bracket FSA cartridge
Rims Giant S-X2 Disc Wheelset (25mm inner rim width)
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tyres Giant Gavia Fondo AR Tubeless, 700x40c
Extras Factory tubeless set up including sealant
