Product details
Key Features:
- Rider Synergy for instant power amplification
- Lightweight design, one of the sector's lightest
- Responsive handling with SBS system
- Shimano EP801-RS / EP600-RS motor options
- 140mm-150mm front/rear travel
- From 15.9kg weight, crafted with alloy
More Riding, Less Weight: The Rise H10 excels in weight reduction, offering a thrilling, responsive ride.
Supercharge Your Ride: Experience instant power with Rider Synergy, multiplying your efforts for an exhilarating ride. The 1.5X factor delivers more range with smaller, lighter batteries—approximately 50% more riding than traditional e-bikes.

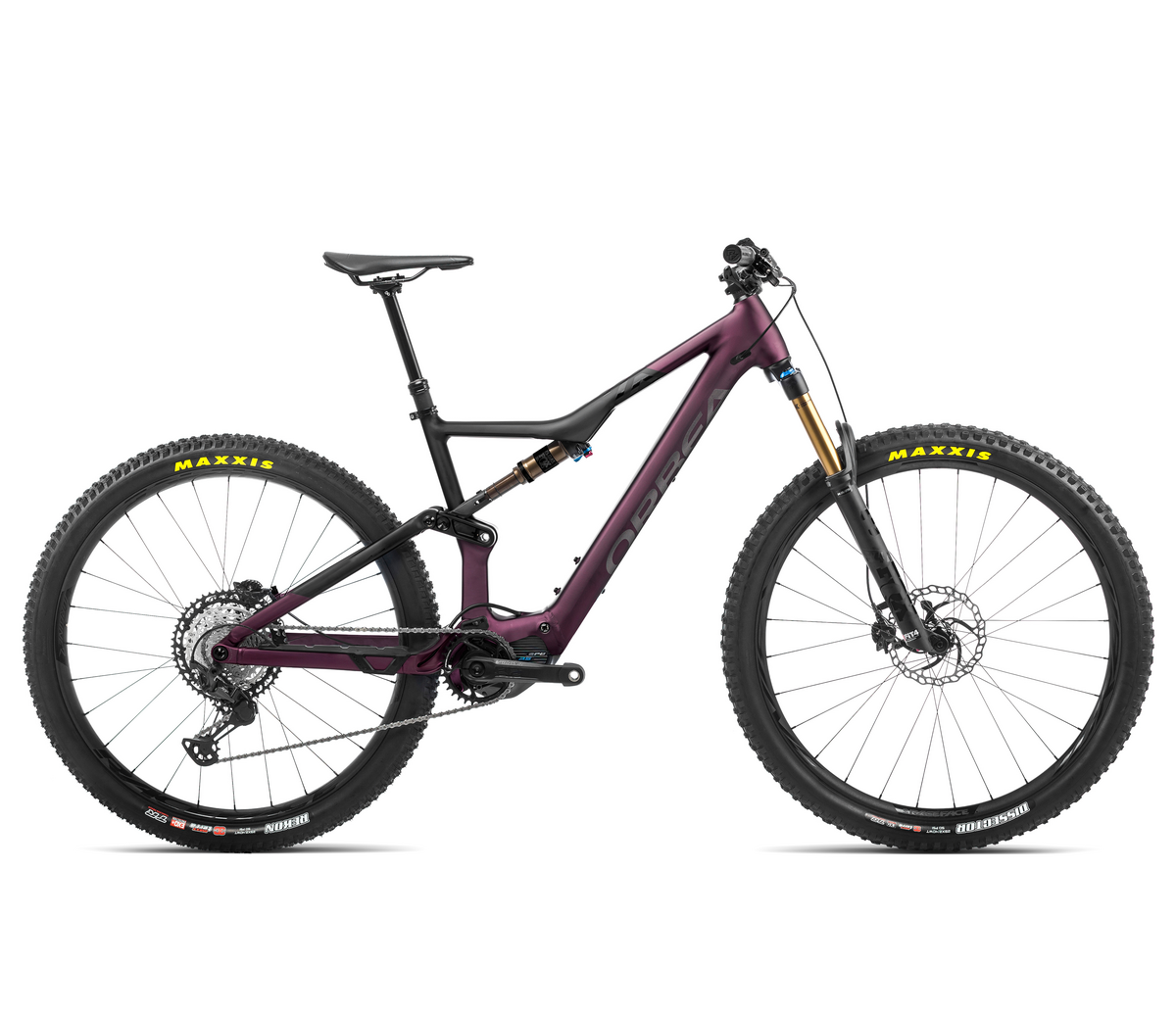

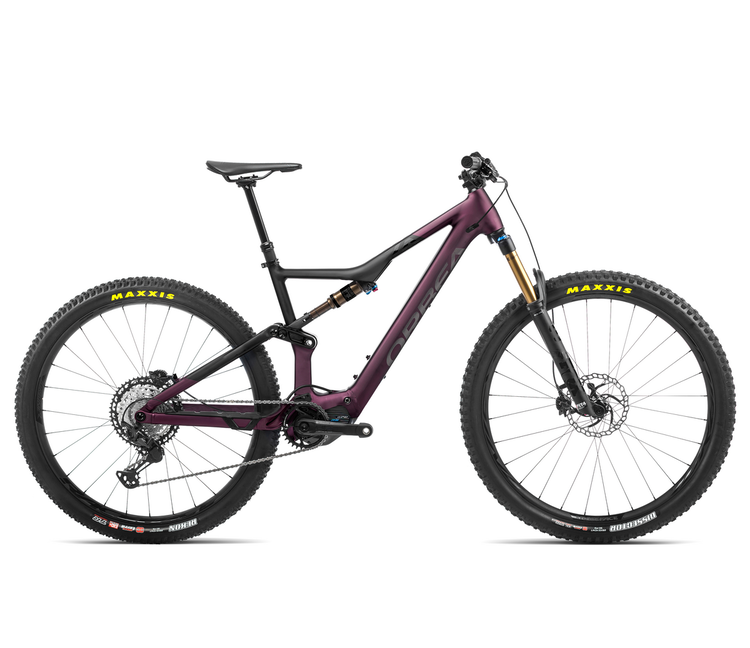

Conquer trails and mountains with the Orbea Rise H10, where innovation meets adventure for a ride like never before. Feel the thrill of Rise Beyond.
Size Guide:
Size |
Height Range (cm) |
Height Range (ft & in) |
S |
150-165 |
4'11"-5'5" |
M |
160-175 |
5'3"-5'9" |
L |
170-185 |
5'7"-6'1" |
XL |
180-198 |
5'11"-6'6" |
Geometry:
![RISE H10](https://www.orbea.com/img/products/geometry/GEO_RISE_HYDRO_2022.jpg)
Component |
S |
M |
L |
XL |
1 - Seat Tube (C-T) |
381 |
419 |
457 |
508 |
2 - Top Tube (Eff) |
565 |
592 |
619 |
649 |
3 - Head Tube |
95 |
105 |
120 |
140 |
4 - Chainstay |
445 |
445 |
445 |
445 |
5 - BB Height |
336 |
336 |
336 |
336 |
6 - BB Drop |
35/32 |
35/32 |
35/32 |
35/32 |
7 - Wheelbase |
1180 |
1205 |
1229 |
1255 |
8 - Head Angle |
66º/65.5º |
66º/65.5º |
66º/65.5º |
66º/65.5º |
9 - Seat Angle |
77º/76.5º |
77º/76.5º |
77º/76.5º |
77º/76.5º |
10 - Standover |
710 |
736 |
766 |
776 |
11 - Reach |
425 |
450 |
474 |
500 |
12 - Stack |
604 |
613 |
627 |
646 |
13 - Fork Length |
547 |
547 |
547 |
547 |
14 - Rake |
44 |
44 |
44 |
44 |
Specifications:
FRAMESET |
|
FRAME |
Orbea Rise Hydro 140mm travel 29" Boost 12x148 |
SHOCK |
Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm |
FORK |
Fox 36 Float Performance 150 Grip 3-Position QR15x110 |
HEADSET |
Acros Alloy 1-1/8 - 1-1/2" Integrated |
DRIVETRAIN |
|
CHAINRING |
ethirteen espec Direct Mount 32T Boost |
CRANK |
Shimano Steps EM600 |
SHIFTERS |
Shimano SLX M7100 I-Spec EV |
CASSETTE |
Shimano CS-M7100 10-51t 12-Speed |
REAR DERAILLEUR |
Shimano XT M8100 SGS Shadow Plus |
CHAIN |
Shimano M7100 |
CHAINGUIDE |
Orbea Rise chainguide |
COCKPIT |
|
HANDLEBAR |
OC Mountain Control MC21 Alu SL, Rise20, Width 800 |
STEM |
OC Mountain Control MC20, 0º |
COMPUTER MOUNT |
OC Computer Mount CM-05, Garmin/Sigma |
BRAKES |
|
BRAKES |
Shimano M6120 Hydraulic Disc |
BRAKES CONFIGURATION |
|
WHEELS |
|
WHEELS |
Oquo Mountain Control MC32TEAM |
TYRES |
Maxxis Dissector 2.40" 120 TPI 3CMaxxTerra Exo+ TLR |
COMPONENTS |
|
SEATPOST |
OC Mountain Control MC21, 31.6mm, Dropper |
SEATPOST LEVER |
Shimano SL-MT500 I-Spec EV |
SADDLE |
Fizik Terra Ridon X5 145mm |
GRIPS |
Ergon GE10 |
EBIKE |
|
MOTOR |
Shimano EP801 |
BATTERY |
Orbea Internal 540Wh (Optional 250 Wh Range Extender) |
DISPLAY |
N/A |
CHARGER |
Orbea 2.Generation eBike Smart charger 42V/2-4A |
REMOTE |
EN600-L |
